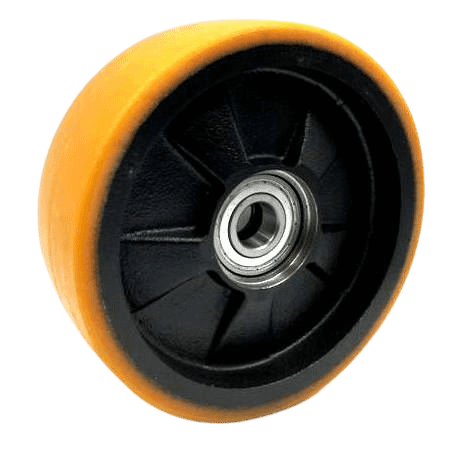

BT jekketralle hjul 175x58mm

kr1.296,00

BT jekketralle hjul 175x58mm

Varenummer: 124604950 Kategori: Stikkord: , ,

Beskrivelse

BT jekketralle hjul 175x58mm

Weight(kg): 3,250 kg
Diameter of the wheel D1 (mm): 175
Width of the wheel W1 (mm): 58
Diameter of the bearing chamber 1 D3 (mm): 47
Depth of the bearing chamber 1 H1 (mm): 21,5
Diameter of the bearing chamber 2 D4 (mm): 47
Depth of the bearing chamber 2 H2 (mm): 18,5
Shaft diameter 1 D5 (mm): 20
Shaft diameter 2 D6 (mm): 20
Hub length L-HUB (mm): 47
Clamping length L-CLA (mm): 35

Tilleggsinformasjon

Vekt 3,2 kg
Dimensjoner 20 × 6 × 6 cm
