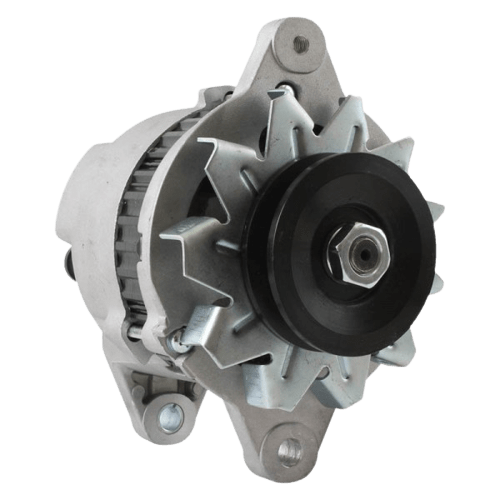

Mitsubishi truck dynamo alternator

Mitsubishi truck dynamo alternator. 12V 50A for nordiske land.

Produktnummer: FT0347 Kategori: Stikkord: ,

Beskrivelse

Mitsubishi truck dynamo alternator 12 volt 50A

  • Type of mounting: type A – 3 fixing feet – 2 in line
  • Voltage U (V): 12
  • Bracket width L1 (mm): 13
  • Bracket width L2 (mm): 13.4
  • Support width L3 (mm): 13
  • Mounting bracket distance X (mm): 81.7
  • Length Y (mm): 36.5
  • Mounting hole diameter D1 (mm): 10
  • Thread size: M8
  • Position of the legs: 30-00
  • Center distance C (mm): 175
  • Integrated regulator: YES
  • Cooling fan: Internal cooling
  • Equipped with vacuum pump: NO
  • Plug type: 40
  • Number of belts: 1
  • Diameter pulley D2 (mm): 70
  • Width of the tread W (mm): 11
  • Vekt (kg): 4.95

Tilleggsinformasjon

Vekt 5,1 kg
Dimensjoner 25 × 25 × 25 cm
