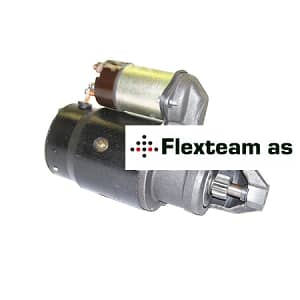

Yale truck startmotor

Beskrivelse

Yale truck startmotor 12 volt 9 tenner.

• Voltage (V) 12
• Neck diameter D1 (mm) 82.5
• Pinion diameter D2 (mm) 30
• Number of teeth 9
• Direction of rotation of the pinion clockwise
• Overall length of the starter L (mm) 291
• Distance between pinion and flange L2 (mm) 34
• Distance between pinion and nose L3 (mm) 12.5
• Distance drive cover L4 (mm) 78
• Number of holes 2
• Position of fixation holes 55-25-00
• Distances between fixation holes 105
• Diameter mounting holes D3 (mm)11.5
• Oil sealed NO
• Weight kg 11.2
